Your Name:  _______________________                              PHY203

                                                                                                            Exam #1

                                    Chapters 1-3

                                                                                                            Thurs., 9/27/07







Lecture Time:         9 a.m             1p.m.             2p.m.       3p.m.       Honors















1-10    _________________        (out of 30)  (3 x ____ )







11       _________________        (out of 30)







12       _________________        (out of 40)







Total              _______________







Multiple choice answer sheet-shade in correct answers below

(one choice per problem):







1



2



3



4



5



6



7



8



9



10



a























b























c























d























e



























1.  You consume a quarter-kilogram piece of beef. By how many slugs have you

increased your mass (at least temporarily)?

a.      0.017 slug

b.     0.17 slug

c.      3.65 slugs

d.      58.36 slugs

e.      None of the above



2.  Consider two trains running in the same direction on parallel tracks.  Train 1 passes the station at time, t = 0, with a constant speed of 5 m/s. Train 2 leaves the station 20 seconds later than train 1 at an initial speed of 0 m/s but an acceleration of 1 m/s2. Find the distance the trains have traveled before they are exactly side-by-side:

a.      50m

b.     100m

c.      200m

d.      400m

e.      None of the above



3.  An actor shoots a gun at a special stunt wall, which explodes upon impact with

the bullet. The wall is 100m away and the actor hears the sound of the explosion 1.0

sec. after shooting the gun. Find the speed of the bullet. (Use 343 m/s as the speed

of sound in air):

a.      57 m/s

b.     77 m/s

c.      141 m/s

d.      243 m/s

e.      None of the above



4.  A police officer gives a burst of the car’s siren as the car is traveling towards a wall.

When the siren burst is sounded, the wall is at a distance of 200m. The officer hears

the siren sound reflected from the wall1.0 sec. later.  Find the speed of the police car.

(Use 343 m/s as the speed of sound in air):

a.      57 m/s

b.     93 m/s

c.      157 m/s

d.      743 m/s

e.      None of the above

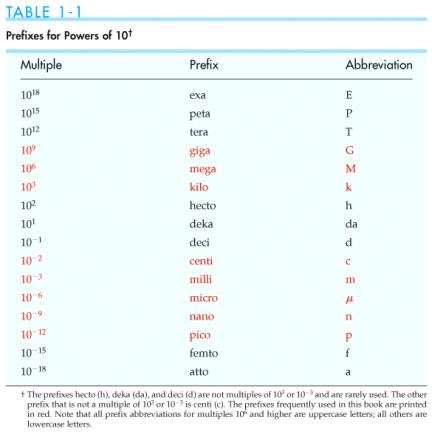

5.   Write 5500 nanoliters in correct SI units:

a.      5.5x10-12 l

b.     5.5x10-6 l

c.      5.5x106 l

d.      5.5x1012 l

e.      None of the above



6.  At t = 0, the speed of an object starting from x=5m and y=5m is 45 m/s at an angle of 30o with respect to the x-axis.  At t=10 sec., the particle is at x= -25m and y= 15m with a speed of 25 m/s at an angle of 45o with respect to the x-axis. Find the average velocity over the time interval:

a.          2.0 m/s

b.          7.0 m/s

c.          -2.0 m/s i +2.0 m/s j

d.          3.0 m/s i -1.0 m/s j

e.          -3.0 m/s i +1.0 m/s j



7.  A bike rider starts from rest with an acceleration of 0.05 m/s2. Find how far the

rider has traveled in 5 min.:

a.           2.25 km

b.          7.5 m

c.           4.5 km

d.          22.5 km

e.          None of the above



8.  A bike rider starts from rest with an acceleration of 0.075 m/s2. Find the speed of

the rider after 4 min.:

a.           0.3 m/s

b.          3.0 m/s

c.           18 m/s

d.          180 m/s

e.          None of the above



9.  A bike rider rides 3 km East and then 7.5 km North. Find the magnitude of the

displacement of the rider at the end of the trip:

a.           -4.5 km

b.          4.5 km

c.           8.08 km

d.          10.5 km

e.          None of the above



10.  A bike rider rides 4.5 km East and then 8.0 km North. Find the angle the

displacement of the rider makes with respect to the East direction measured in a

counterclockwise direction from the positive East axis at the end of the trip:

a.           -60.6o

b.          -29.4o

c.           29.4o

d.          60.6o

e.          None of the above

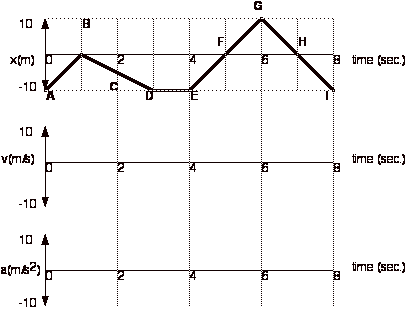

11.  For the displacement curve of a toy car on a 1D track, first  plot the corresponding curves for velocity and acceleration below.



Show your work:

a.  Find the total distance traveled from points C-F.









b.  Find the average speed from points C-F.









c.  Find the average velocity from points B-H.







d.  Find the instantaneous velocity at point H.







e.  Find the instantaneous speed at point H.





12.  A hockey player launches a slap shot at the net from 15m away at an angle with the horizontal of 15o and with an initial speed of 30 m/s. The height of the net is 1.22m. Show your work. (Note: use g = 9.81 m/s2).



a.  Calculate the initial x and y components of the hockey puck’s initial velocity and write the initial velocity, vi, of the puck in vector form.















b.  Calculate the time in sec. that it will take for the puck to reach the net.











c.  Determine whether the puck will enter the net or not-explain briefly why or why not.

















d.  If the net were not in place, calculate the highest point the puck would reach.















e.  If the net were not in place, calculate the horizontal distance the puck would travel before hitting the ice.









PHY203

Exam #1

Crib Sheet

Chapters 1-3





speedAV = (total distance traveled)/Dt



Dr = r2 – r1 (displacement)

vAV = Dr/Dt



aAV = Dv/Dt



vInst = dr/dt



aInst = dv/dt





For constant acceleration:



xf = xo + vot + (1/2)at2



vf = vo + at



Vf2 = vo2 + 2a(xf - xo)





use g = 9.81 m/s2, the acceleration due to gravity, unless otherwise directed







For a vector A with magnitude A and direction q (measured counterclockwise with respect to the x-axis):



Ax = Acos(q)



Ay = Asin(q)



A = (Ax2 + Ay2)1/2



tan(q) = Ay/Ax



quadratic eq. sol.:      If ax2 + bx + c = 0; then x = -b+(b2-4ac)1/2/(2a)
